275x2x32 Hss Circular Saw Blade for Metal Cutting on Pipe Cutting Implementation
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | LIONORD |
| Certification: | ISO9001 |
| Model Number: | 300*2.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $16.00 - $33.00/pieces |
| Packaging Details: | pp bag/white color box |
|
Detail Information |
|||
| Warranty: | 90 DAYS | Blade Thickness: | 2-5MM |
|---|---|---|---|
| Arbor Size: | AS REQUESTS | Teeth Per Inch: | AS REQUESTS |
| Blade Length: | NO | Blade Diameter: | 250-500MM |
| Process Type: | Laser Welded, Cold PRESS | Customized Support: | OEM, ODM, OBM |
| Finishing: | TICN | Size: | 275*2.0 |
| Product Name: | Hss-dm05 Non-burr Metal Cutting Saw Blade | HSS Sawblade Size: | 200-550mm |
| Blade Material: | HSS | Raw Material: | W5/M2(HSS-Dmo5)/M42/M35(HSS-Co5%) |
| Surface Treatment: | VAPO/TIN/TICN/TIALN | Blade Thickness: | 1.0-5.0mm |
| Bore Diameter:: | 32mm, 40mm, 50mm Or As Request | Quality Grades: | High Performance |
| Procedure: | Long Service Life | Color: | As Requests |
Product Description

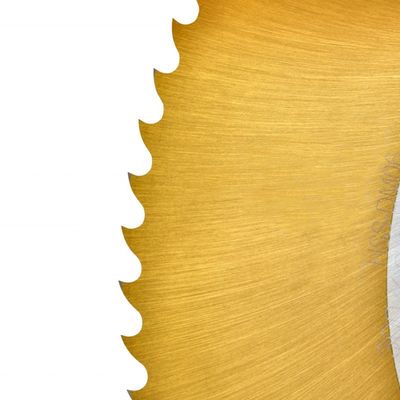

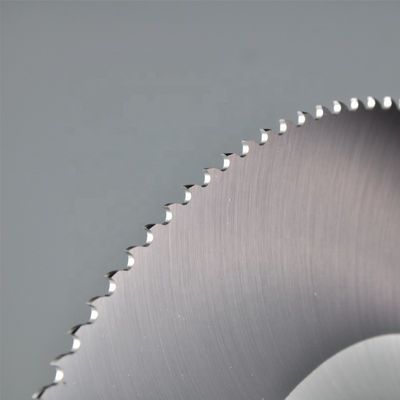

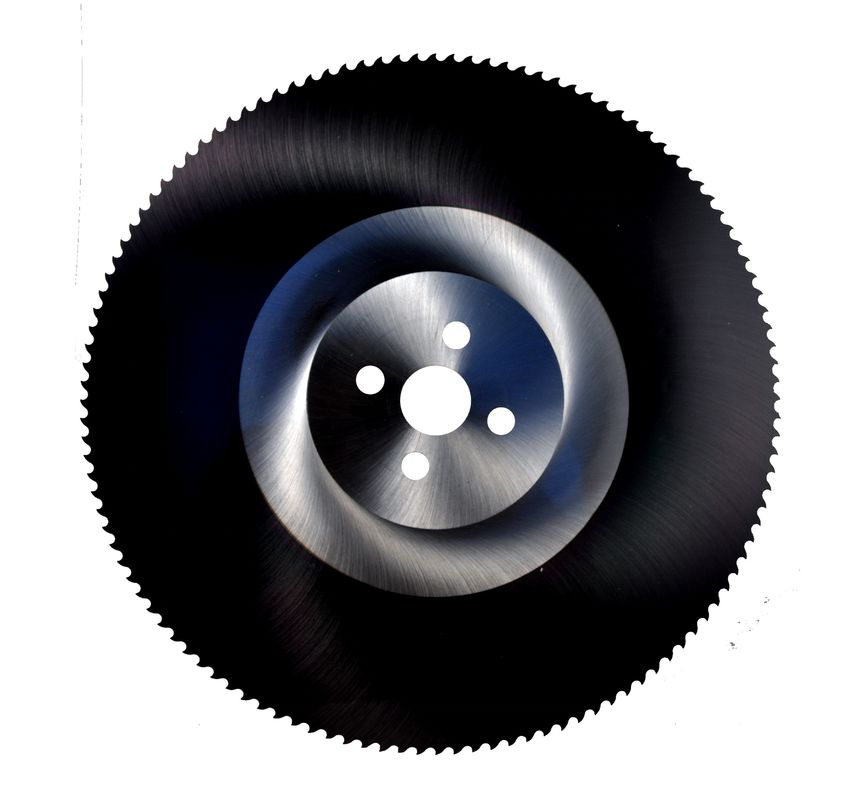

Stainless Steel Cutting Saw Blade Circular Hss Saw Blade For Metal Cutting Tubes
circular saw blade is made of high quality HSS material, high hardness and durable in use.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.
Material: M2(HSS-Dmo5)/M35(HSS-Co5%)/M42/W5
Surface Treatment: VAPO,TIN,TICN,TIALN.
Tooth form: A/AW/B/BW/HZ
Bore Diameter: 32mm,40mm,50mm or as request
Specification: Please refer to standard table, we also can produce as customer's request.
Application: For cutting various steel material and form such as solid bar, pipe, rail etc. - For cutting various non-ferrous
material as like aluminum, copper, bronze, brass of pipe, bar, sash and plate etc.
Surface Treatment: VAPO,TIN,TICN,TIALN.
Tooth form: A/AW/B/BW/HZ
Bore Diameter: 32mm,40mm,50mm or as request
Specification: Please refer to standard table, we also can produce as customer's request.
Application: For cutting various steel material and form such as solid bar, pipe, rail etc. - For cutting various non-ferrous
material as like aluminum, copper, bronze, brass of pipe, bar, sash and plate etc.
This circular saw blade is made of high quality HSS material, high hardness and durable in use.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.
ITEM | CIRCULAR SAW BLADE |
MATERIAL | M2(HSS-Dmo5)/M35(HSS-Co5%)/M42/W5 |
COATING | VAPO,TIN,TICN,TIALN |
APPLICABLE MACHINE | various kind of PIPE CUTTING MACHINE |
TEETH FORM | A/AW/B/BW/HZ |
APPLICATION | STEELBAR/PIPE/ALUMINUM/COPPER/BRONZE/BRASS |

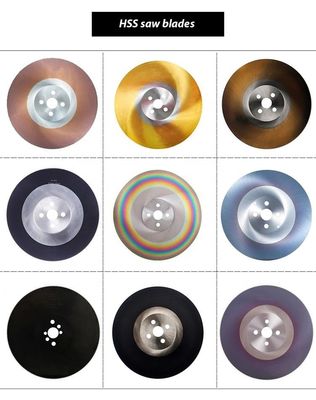

SURFACE COATING
TIN
TICN
RED
CRALN
Quality Grade: Typical chemical composition in %HSS-Dmo5 - DIN: 1.3343 - AISI: M2 - JIS: SKH 51 | ||||||||||||
C | Si | Mn | Cr | Mo | V | W | ||||||
0.9 | 0.25 | 0.3 | 4.1 | 5 | 1.8 | 5.4 | ||||||
HSS CO5% - DIN: 1.3243 - AISI: M35 - JIS: SKH 55 Typical chemical composition in % | ||||||||||||||
C | Si | Mn | Cr | Mo | V | W | Co | |||||||
0.9 | 0.4 | 0.3 | 4.1 | 5 | 1.9 | 6.4 | 4.8 | |||||||
Standard driving pin holes of HSS circular saw blades | ||
Central hole | Driving pin holes | |
ø mm | Number/Diametr/Position | |
32 | 2/8/45+2/9/50+2/11/63; 2/8/45+2/11/63; 2/8/45+4/12/64 | |
40 | 4/12/64+2/9.5/55+4/12/64 | |
50 | 4/15/80; 4/14/85+4/15/80 | |
WHY US?
We have more than 20 years for export the circular saw blade for cutting pipe , tube and solid bar.
FREE SAMPLE SERVICE
We can provide sample service with your logo , your own packing and delivery within 7days.
CUSTOMIZED SERVICE
OEM and ODM service are both in our production .
How to pack
We each piece of the blade surface to rust treatment (rub anti rust oil, paint, surface plating a variety of titanium, chromium,
zinc and other metals). When the product is packed, each of our employees with gloves for packaging, and the final inspection, to
ensure that the product quality into the box in good condition. There are many kinds of packing in our packing. Including blister,
plastic bags, paper boxes, plastic boxes, etc., if you want other types of packaging, please contact our staff!
After packing
We put packed finished product put on clean, dry and rain can not enter into the environment, the products packed in a customized
carton, packing operation and put the complete package of products as well as the carton on the tray. If guests have special
requirements, wooden case for export in the requirements of the guests, we will custom with the guest specified size wooden box is
exported, and entrusted the whole transported to the guest's designated place so far under the request of the guests, the whole
supporting exports, we will find can export tray, which can then be playing supporting exports, and entrusted the whole
transported to the guest's designated place so far.
We each piece of the blade surface to rust treatment (rub anti rust oil, paint, surface plating a variety of titanium, chromium,
zinc and other metals). When the product is packed, each of our employees with gloves for packaging, and the final inspection, to
ensure that the product quality into the box in good condition. There are many kinds of packing in our packing. Including blister,
plastic bags, paper boxes, plastic boxes, etc., if you want other types of packaging, please contact our staff!
After packing
We put packed finished product put on clean, dry and rain can not enter into the environment, the products packed in a customized
carton, packing operation and put the complete package of products as well as the carton on the tray. If guests have special
requirements, wooden case for export in the requirements of the guests, we will custom with the guest specified size wooden box is
exported, and entrusted the whole transported to the guest's designated place so far under the request of the guests, the whole
supporting exports, we will find can export tray, which can then be playing supporting exports, and entrusted the whole
transported to the guest's designated place so far.
Want to Know more details about this product
