Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating

Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating

Product Details:

Place of Origin: Zhejiang, China
Brand Name: LIONORD
Model Number: 250*1.2mm

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: $13.50/pieces 10-99 pieces
Packaging Details: HSS circular saw blade packing by pp bag/white color box
Get Best Price Contact Now

Detail Information
Warranty: 90 DAYS Blade Thickness: 1.2 1.6 2.0 2.5
Arbor Size: AS REQUESTS Teeth Per Inch: AS REQUESTS
Blade Length: NO Blade Diameter: 250
Process Type: Laser Welded Finishing: TICN
Size: 250*1.2mm Product Name: HSS Piep Cutting Circular Saw Blade
HSS Sawblade Size: 250*1.2 Mm Blade Material: HSS Dmo5/M42/M35/M2CO2
Surface Treatment Coating: TIN/TICN/TIALN Blade Thickness: 1.2-2.5mm
Bore Diameter:: 32 Mm As Request Color: Yellow/Black/rainbow
Package: Carton Box Cutting Material: Steel Pipes
Advantage: Factory Direct Sales

Product Description

Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 0
Products Description
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 1
Pipe Cutting circular saw blade with M2CO2 ,M2 , W5
Material: M2(HSS-Dmo5)/M35(HSS-Co5%)/M2CO2/W5
Surface Treatment: VAPO,TIN,TICN,TIALN.
Tooth form: A/AW/B/BW/HZ
Bore Diameter: 32mm,40mm,50mm or as request
Specification: Please refer to standard table, we also can produce as customer's request.
Application: saw blade for metal cutting various steel material and form such as solid bar, pipe, rail etc. - For cutting various non-ferrous material as like aluminum, copper, bronze, brass of pipe, bar, sash and plate etc.M2 material M2 Blade suitable to cut Normal Steel pipe and iron pipe
M2CO2 Blade suitable to cut Stainless steel.
Super-A blade raw material import from Japan ,suitable to cut pipe thickness over 3mm .
HSS-Dmo5 - DIN: 1.3343 - AISI: M2 - JIS: SKH 51
Typical chemical composition in %
C
Si
Mn
Cr
Mo
V
W
0.9
0.25
0.3
4.1
5
1.8
5.4
HSS CO5% - DIN: 1.3243 - AISI: M35 - JIS: SKH 55
Typical chemical composition in %
C
Si
Mn
Cr
Mo
V
W
Co
0.9
0.4
0.3
4.1
5
1.9
6.4
4.8
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 2
ITEM
HSS CIRCULAR SAW BLADE FOR METAL PIPE
MATERIAL
M2(HSS-Dmo5)/M35(HSS-Co5%)/M42/W5
COATING
VAPO,TIN,TICN,TIALN
APPLICABLE MACHINE
various kind of PIPE CUTTING MACHINE
TEETH FORM
A/AW/B/BW/HZ
APPLICATION
 STEELBAR/PIPE/ALUMINUM/COPPER/BRONZE/BRASS
Driving pin holes of HSS circular saw blades:
Standard driving pin holes of HSS circular saw blades
Central hole
Driving pin holes
ø mm
Number/Diametr/Position
32
2/8/45+2/9/50+2/11/63; 2/8/45+2/11/63; 2/8/45+4/12/64
40
4/12/64+2/9.5/55+4/12/64
50
4/15/80; 4/14/85+4/15/80
Stainless Steel Cutting Saw Blade Circular Hss Saw Blade For Metal Cutting Tubes
circular saw blade is made of high quality HSS material, high hardness and durable in use.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.
Material: M2(HSS-Dmo5)/M35(HSS-Co5%)/M42/W5
Surface Treatment: VAPO,TIN,TICN,TIALN.
Tooth form: A/AW/B/BW/HZ
Bore Diameter: 32mm,40mm,50mm or as request
Specification: Please refer to standard table, we also can produce as customer's request.
Application: For cutting various steel material and form such as solid bar, pipe, rail etc. - For cutting various non-ferrous
material as like aluminum, copper, bronze, brass of pipe, bar, sash and plate etc.

This circular saw blade is made of high quality HSS material, high hardness and durable in use.
accurate,fast and precision cutting.
These steel circular saw blades have precision ground teeth for smooth,Sharp cutting edges
provide fast and smooth cuts,accurate cuts.
When cutting stainless steel material,HSS circular saw blade with coating should be used.

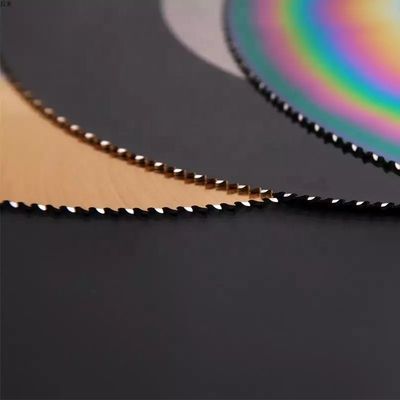

Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 3
Rainbow
This coating is used to cut stainless steel and alloy steel materials. High-speed moving compared to general coating wear
resistance Reduced resistance to extend life and protect Stability under long-term action, and in the saw blade Cobalt can
effectively improve the stability of the saw blade. Hardness and wear resistance, durability is ordinary stainless steel 1-2
times, this saw blade is especially suitable for stainless Saw cutting of steel bar and profile.
HSS Saw blade Parameter:
Coating thickness: 5-10 μm
Surface hardness: 900HV
Coefficient of friction: 0.65
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 4
Titanium
After a special PVD coating treatment, the surface of the saw blade is golden yellow with a surface hardness of 2400 HV, which is near ly three times higher than that of the steam treated saw blade, and the test coefficient is reduced to 0.55. Suitable for quick sawing on semi-automatic or fully automatic metal circular saws. Steel pipes, iron pipes, rods, etc. are twice as fast as
steam-treated saw blades, which effectively reduces costs. When sawing a stainless steel tube, a satisfactory cutting effect can also be obtained.
Circular saw metal cutting blade Parameter:
Coating thickness: 5-10μm
Surface hardness: 2200-2400HV
Coefficient of friction: 0.65
Oxidizing humidity: 600℃
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 5
Black
After steam treatment, an oxide layer (Fe304) is formed on the surface of the saw blade. Good smoothness, help to increase the self-lubrication of the saw blade, the saw blade is stuck by the material in one-stop Can avoid, the ability to cool and absorb better, single relative to other coated saw blades, cut The number of cuts is relatively small, which is the most commonly used saw blade.
Pipe cut circular saw blade Technical parameter:
Coating thickness: 5-10μm
Surface hardness: 2200-2400HV
Coefficient of friction: 0.65
Quality Grade:
HSS-Dmo5 - DIN: 1.3343 - AISI: M2 - JIS: SKH 51
Typical chemical composition in %
C
Si
Mn
Cr
Mo
V
W
0.9
0.25
0.3
4.1
5
1.8
5.4
HSS CO5% - DIN: 1.3243 - AISI: M35 - JIS: SKH 55
Typical chemical composition in %
C
Si
Mn
Cr
Mo
V
W
Co
0.9
0.4
0.3
4.1
5
1.9
6.4
4.8
Standard driving pin holes of HSS circular saw blades
Central hole
Driving pin holes
ø mm
Number/Diametr/Position
32
2/8/45+2/9/50+2/11/63; 2/8/45+2/11/63; 2/8/45+4/12/64
40
4/12/64+2/9.5/55+4/12/64
50
4/15/80; 4/14/85+4/15/80
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 6
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 7
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 8
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 9
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 10
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 11

The good comments from Customer ,
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 12
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 13
Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 14


Steel Pipes Cutting Material 250*1.2mm HSS-Dmo5 Circular Saw Blade with Tin Coating 15

How to pack
We each piece of the blade surface to rust treatment (rub anti rust oil, paint, surface plating a variety of titanium, chromium,
zinc and other metals). When the product is packed, each of our employees with gloves for packaging, and the final inspection, to
ensure that the product quality into the box in good condition. There are many kinds of packing in our packing. Including blister,
plastic bags, paper boxes, plastic boxes, etc., if you want other types of packaging, please contact our staff!

After packing
We put packed finished product put on clean, dry and rain can not enter into the environment, the products packed in a customized
carton, packing operation and put the complete package of products as well as the carton on the tray. If guests have special
requirements, wooden case for export in the requirements of the guests, we will custom with the guest specified size wooden box is
exported, and entrusted the whole transported to the guest's designated place so far under the request of the guests, the whole
supporting exports, we will find can export tray, which can then be playing supporting exports, and entrusted the whole
transported to the guest's designated place so far.
