Powerful Motor Automatic Metal Cutting Band Saw Machine with Adjustable Cutting Speed
Product Details:
| Place of Origin: | China |
| Certification: | CE |
Payment & Shipping Terms:
| Price: | $6,900.00/sets 1-4 sets |
|---|
|
Detail Information |
|||
| Features: | 30% Cutting Efficiency Improved | Condition: | New |
|---|---|---|---|
| Machine Type: | Band Saw Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | Not Available | Core Components: | Gearbox, Engine |
| Showroom Location: | None | Warranty: | 2 Years |
| Weight (KG): | 2000 | Applicable Industries: | Metal Cutting |
| Key Selling Points: | Automatic | Product Name: | Intelligent Automatic Metal Cutting Band Saw Machine |
| Application: | Industrial Metal Cutting | Capacity: | 330mm |
| Motor: | 5.5 Kw | BLADE SIZE: | 4115*34mm |
| Automatic Cutting Speed Adjust: | 30% Blade Lifetime Improved | Hydraulic Blade Tension: | Auto Chip Conveyor |
| Automatic Cutting Speed Adjust: | Powerful Motor | ||
Product Description
Products Description
Automatic CNC metal cutting band saw machine and blade Factory quality blade and competitive price

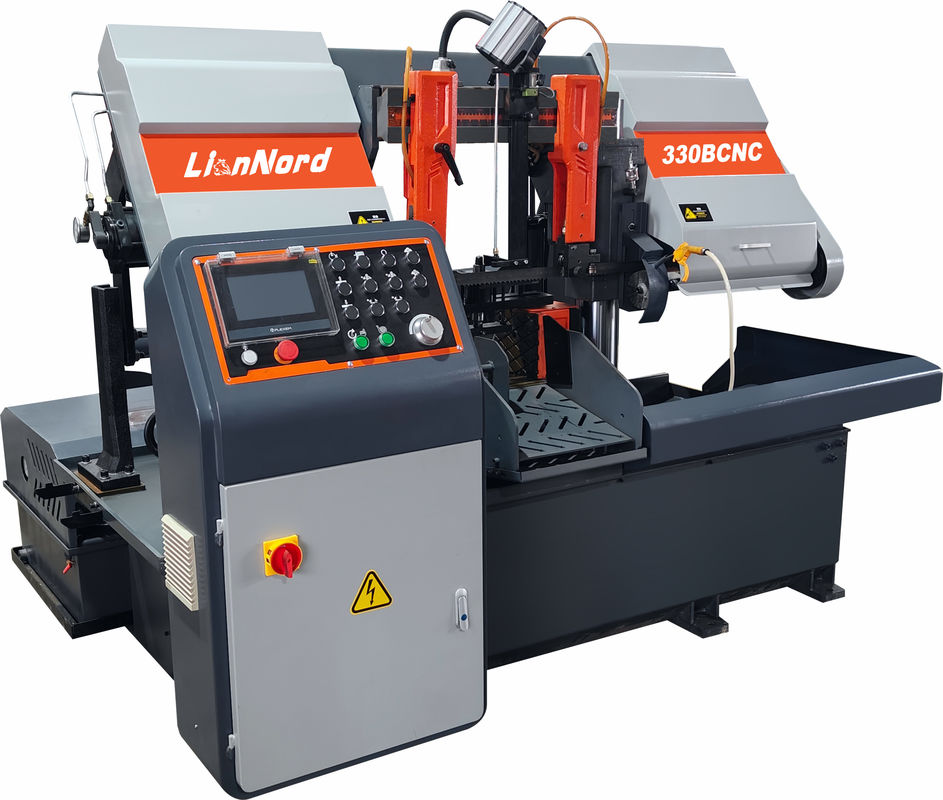

Model No. | 330 B CNC (LionNord automatic Metal Cutting Band Saw Machine) | ||
Technical Data | Cutting capacity(mm) | 330mm for Round Shape 330X330 for square Shape | |
Blade speed(m/min) | 10-80m/min inverter speed | ||
Blade size(mm) | 34×1.1×4115 | ||
Main Motor(kw) | 5.5 (4P) | ||
Hydraulic Motor(kw) | 0.75 | ||
Coolant Pump(kw) | 0.09 | ||
Work piece Clamping | Hydraulic Vise | ||
Blade Tension | Hydraulic | ||
Main Drive | Worm wheel drive | ||
Chip conveyor | Automatic | ||
Material feed | Auto | ||
Multiple feed | 400mmx999 times | ||
Machine size | 2200×2100×1650 | ||
Machine weight | 1800kg | ||
Want to Know more details about this product
